The Vector V25 comes equipped to meet any disaster, with required navigation lights, marine VHF radio, GPS, cabin heating and ventilation as standard equipment.
Contact Us to Find Out More »

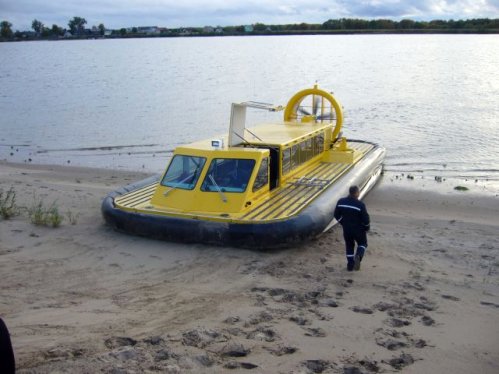

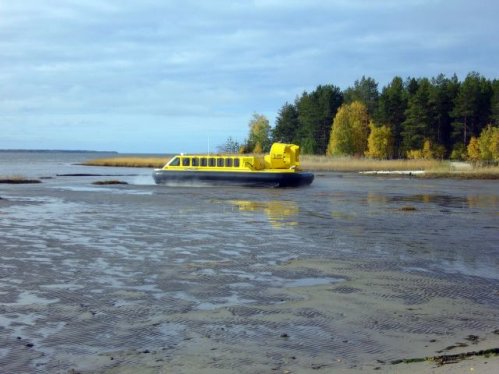

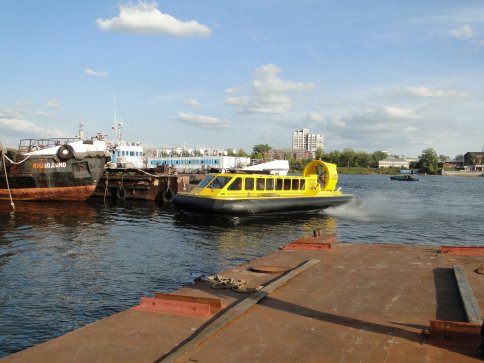

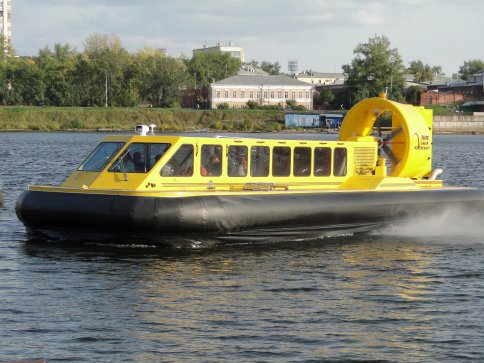

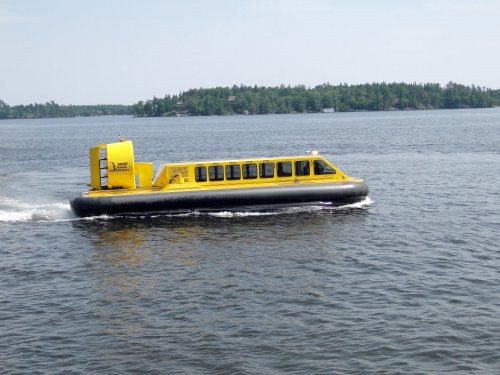

CLICK ON IMAGES BELOW FOR LARGER VIEW OF VECTOR 25 PHOTOS.
Overview
Superior control
Full control under static hover conditions
Control during braking and reverse
Responsive pitch trim control
Precise pitch control by elevators
Craft is equipped with ballast tanks
Removable Sides
Highly Transportable
Small Storage Requirements
Hydrodynamic Planing Surface Hull
Safe recovery in rough water in the event of engine failure

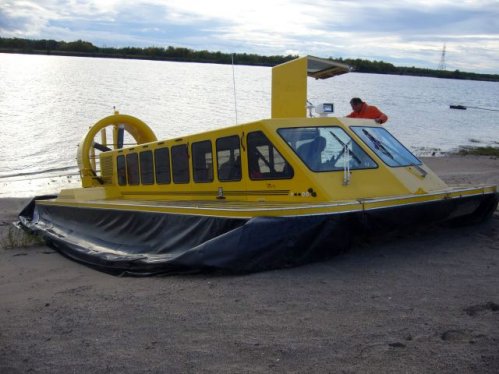

Loop Segmented Skirt
Loop and segmented for passenger comfort
Anti spray skirt to reduce spray
Air Cushion Supply

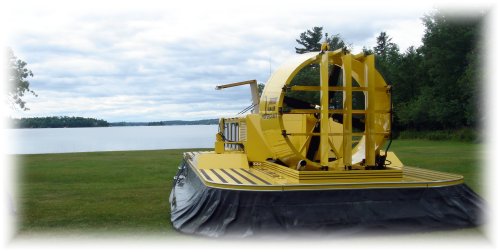

Lift provided by two ducted fans
Welded aluminum hull and superstructure
Built primarily of Marine grade aluminum, for many years of trouble-free service
Specifications
HULL & SUPERSTRUCTURE: ALUMINUM
LENGTH:41 ft 11 in 12.61 meters
WIDTH side structures on: 14' 5" - 4.4 M
WIDTH side structures down: 9' 6" - 2.92 M
HEIGHT OFF CUSHION: 10' 11" - 3.10 M
PAYLOAD - maximum: 6000 lbs - 2721 KG
CUSHION HEIGHT: 18" - 0.45M
FUEL CAPACITY: 60 GAL - 271 LT
ENGINE - DIESEL: 370 HP

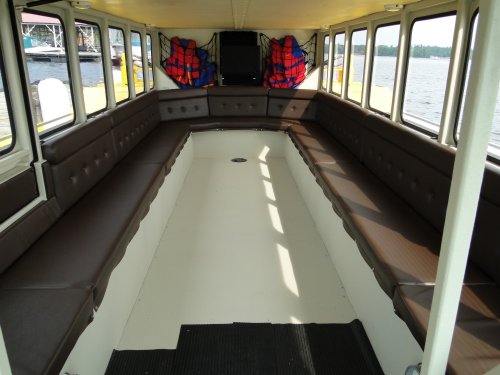

SEATING CAPACITY: 25 plus operator
SPEED - cruise on water: 35 Knots - 64.9 KMPH
FUEL CONSUMPTION - full Payload: 7.3 gallons/hr - 33 litres/hr
ENDURANCE: 7 Hours
WAVE HEIGHT - full Payload: 39 inches - 1 Meter
BRAKING: FULL REVERSING PROPELLER
PITCH & TRIM CONTROL: ELEVATORS
BALLAST SYSTEM
SKIRT SYSTEM: LOOP & SEGMENT
STANDARD FEATURES ON VECTOR 25
OPTIONAL EQUIPMENT FOR VECTOR 25
VIDEO
VIDEO

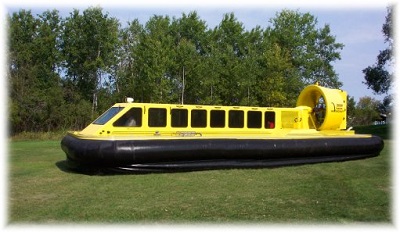

The Vector V25 is our ultimate model offering the highest payload available with capacity to evacuate 25 victims at a time. The standard 60 inch door enables easy loading and unloading of supplies, stretchers or people. Powered by a 370 horsepower Cummins Diesel engine, the Vector V25 will provide years of service to ensure immediate emergency and disaster response capabilities across land or water.
