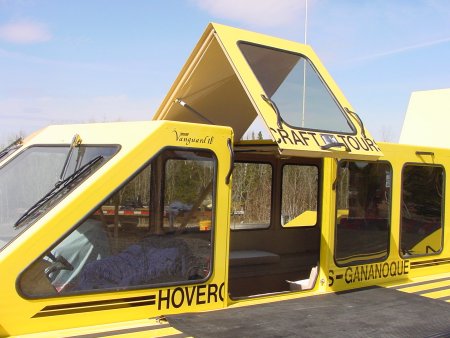

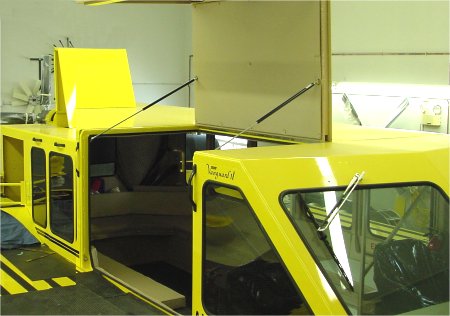

Designed to be tough and handle the worst of environmental extremes, the Vanair Viking V12 offers unparalleled compact, reliable performance for disaster response and evacuation. Powered by a 275 horsepower Cummins Diesel engine, the Vanair Viking provides excellent payload capability with easy access through the 60-inch wide door for cargo, stretchers or carrying people to safety.
The Vanair Viking comes with required navigation lights, marine VHF radio, GPS, cabin heating and ventilation as standard equipment. Built primarily of marine grade aluminum, the Vanair Viking V12 will provide many years of emergency response capabilities.
Contact Us to Find Out More »
CLICK ON IMAGES BELOW FOR LARGER VIEW OF VIKING 12 PHOTOS.
Overview
Superior control
- Full control under static hover conditions
- Control during braking and reverse
Responsive pitch trim control
- Precise pitch control by elevators

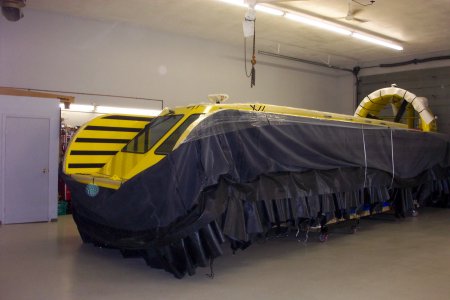

Removable Sides
- Highly Transportable
- Small Storage Requirements
Hydrodynamic Planing Surface Hull
- Safe recovery in rough water in the event of engine failure
Loop Segmented Skirt
- Loop and segmented for passenger comfort
- Anti spray skirt to reduce spray
Air Cushion Supply
- Lift provided by two ducted fans
Welded aluminum hull and superstructure
- Built primarily of marine grade aluminum
Specifications
- HULL & SUPERSTRUCTURE: ALUMINUM
-
LENGTH: 31' 6 in - 9.64M
-
WIDTH side structures on: 14' 5" - 4.41M
-
WIDTH side structures down: 8' 5" - 2.59 M
-
HEIGHT OFF CUSHION: 10' 2" - 3.10 M
-
PAYLOAD - maximum: 4000 lbs - 1814 KG
-
CUSHION HEIGHT: 18" - 0.45M
-
FUEL CAPACITY: 60 GAL - 271 LT
-
ENGINE - DIESEL: 275 HP
-
SEATING CAPACITY: 12 plus operator
-
SPEED - cruise on water: 35 Knots - 64.9 KMPH
-
FUEL CONSUMPTION - full Payload: 7.3 gallons/hr - 33 litres/hr
-
ENDURANCE: 8 Hours
-
WAVE HEIGHT - full Payload: 39 inches - 1 Meter
-
BRAKING: FULL REVERSING PROPELLER
-
PITCH & TRIM CONTROL: ELEVATORS
-
SKIRT SYSTEM: LOOP & SEGMENT
STANDARD FEATURES ON VIKING 12
-

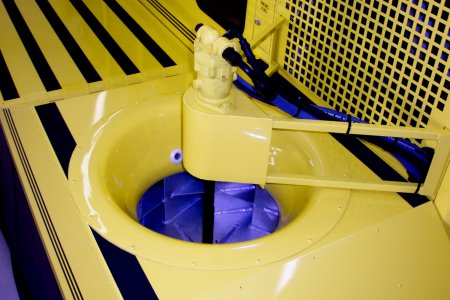

Lift Fans on each side to provide the lift for the craft
-
Variable lift/thrust control system
-
Elevator pitch trim control
-

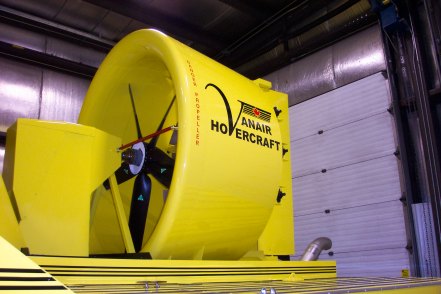

Variable Pitch - Full Reversing Propeller
-
Loop and segmented skirt system
-
Anti spray skirt
-

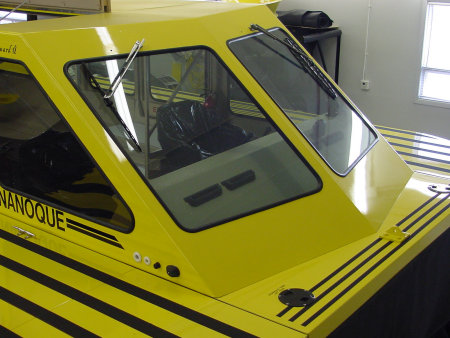

Windshield wipers
-
Cabin heating and ventilation
-

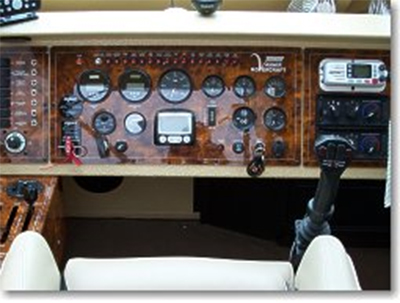

Complete instrumentation
-
Navigation Lights
-
Tinted windows
-
GPS
-
VHF Radio
OPTIONAL EQUIPMENT FOR VIKING V12
-
Boarding Ladder with Hand Rail
-
Radar
-
Life Raft
-
On-board spares kit
-
Air Conditioning
-
Cargo area tie-downs
-
Custom interior
-
Custom exterior paint scheme
-
Remote control spot light
-
Interior communication system
-
Complete Safety Kit for water operations
-
Spreader Bar to lift craft
-
Fitted cover
-
Custom Trailer
-
Shipping Pallet
-
Shrink Wrapping
-
Engine Arctic Heater
